Tiling a Badge with a Hexiamond and a Heptiamond
Introduction
A hexiamond is a plane figure
formed by joining 6 equal equilateral triangles edge to edge.
A heptiamond is a plane figure
formed by joining 7 equal equilateral triangles edge to edge.
A polyiamond badge is
a six-sided polyiamond whose alternate sides have equal length.
It is a truncated equilateral triangle.
A regular hexagon and an equilateral triangle are special cases of badges.
Here I show the smallest known badges
that can be tiled by copies of a given hexiamond and heptiamond, using at least
one of each.
If you find a smaller solution or solve an unsolved case, please write.
Carl Schwenke and Johann Schwenke contributed new solutions
and smaller solutions.
See also:
13 Cells
25 Cells
33 Cells

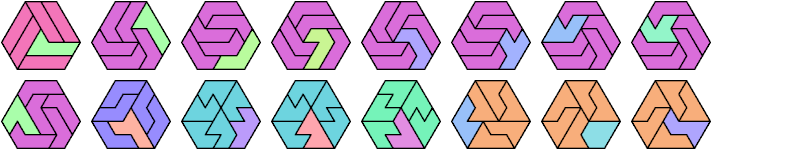

37 Cells
46 Cells
49 Cells
52 Cells

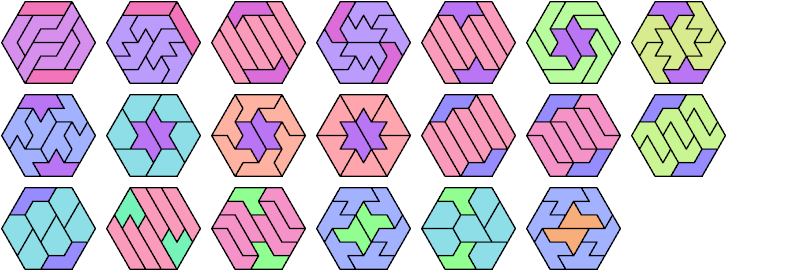

54 Cells
61 Cells
64 Cells
69 Cells
73 Cells

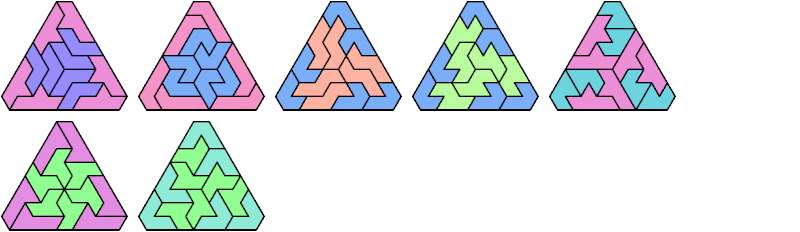

78 Cells
81 Cells
88 Cells

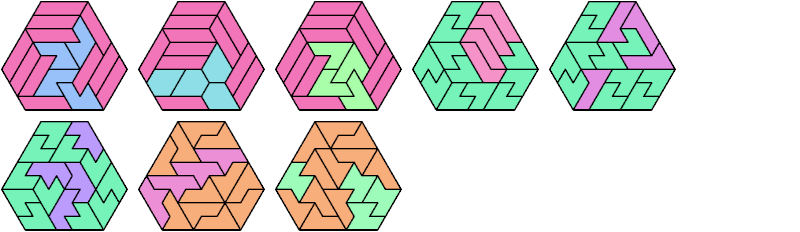

94 Cells

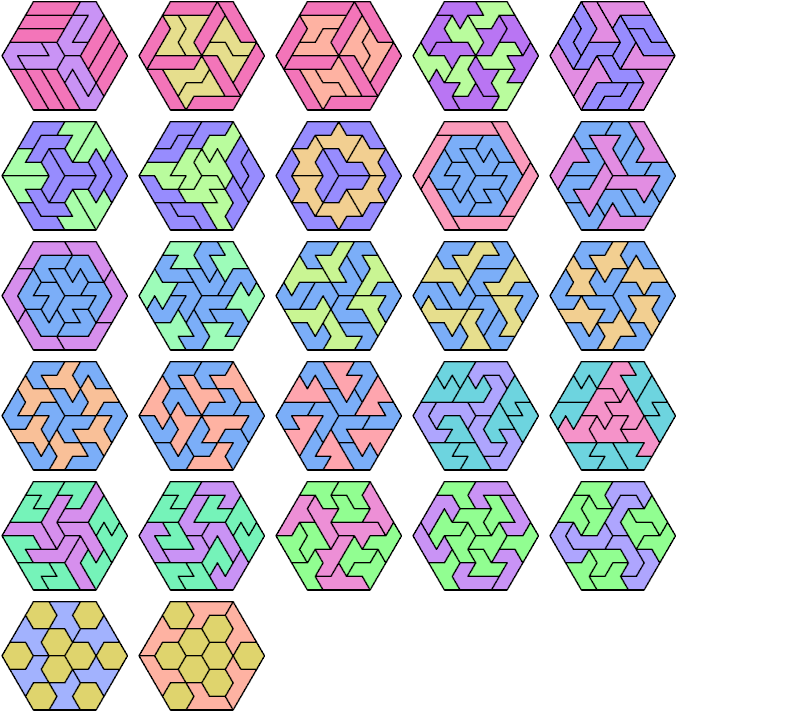

96 Cells

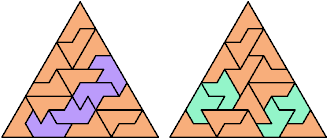

100 Cells
109 Cells

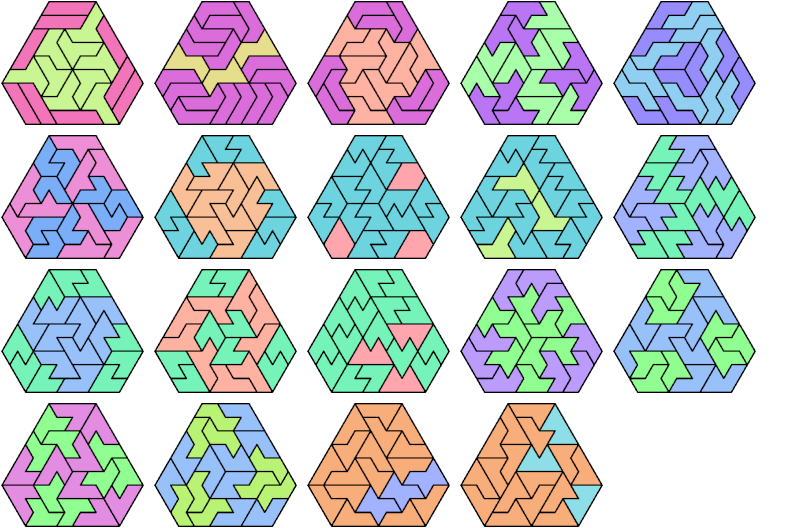

117 Cells

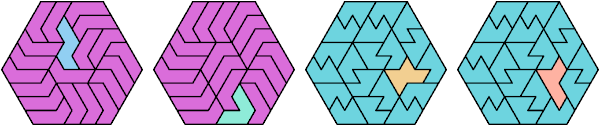

121 Cells

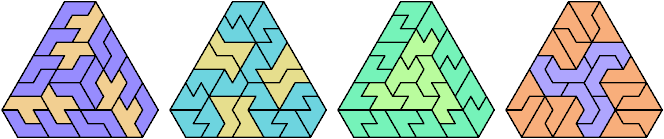

132 Cells
141 Cells
148 Cells

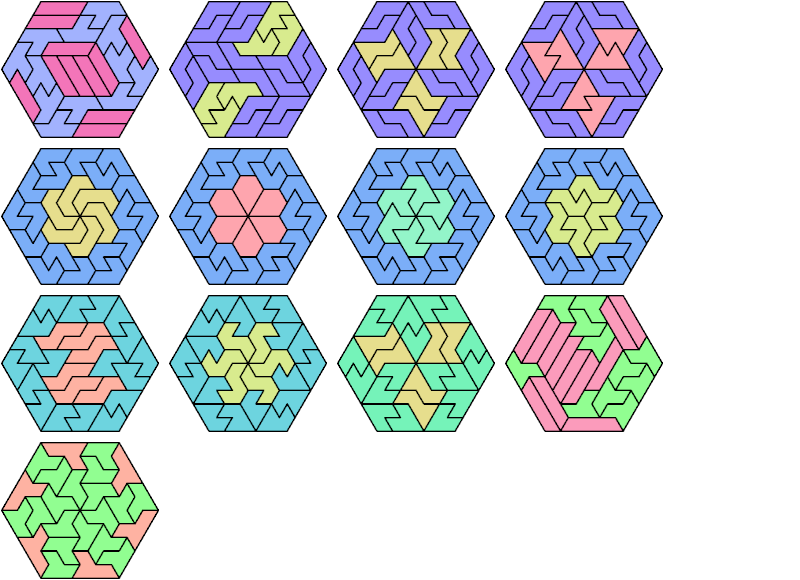

150 Cells

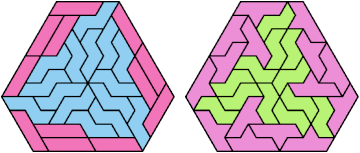

177 Cells

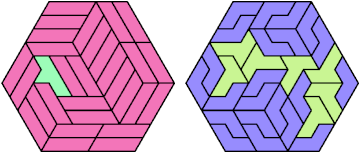

181 Cells
198 Cells
208 Cells

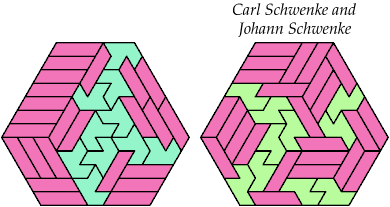

214 Cells

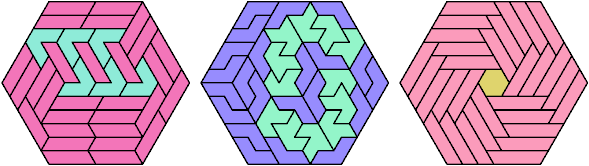

216 Cells

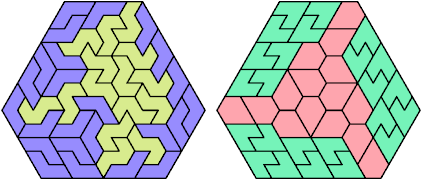

249 Cells

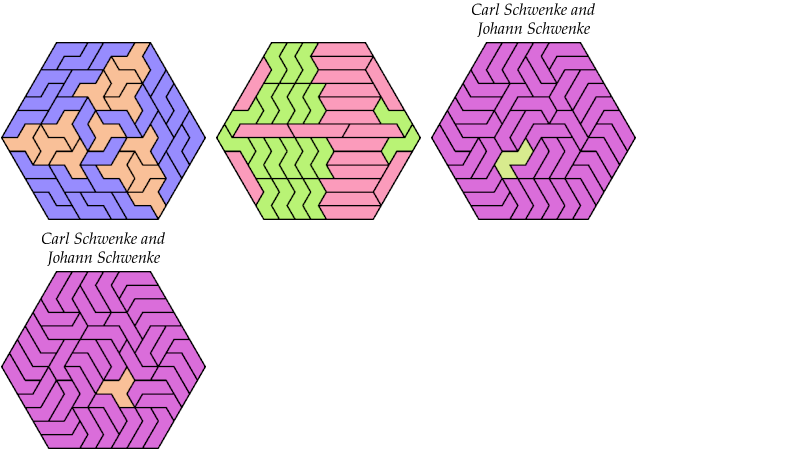

253 Cells
276 Cells

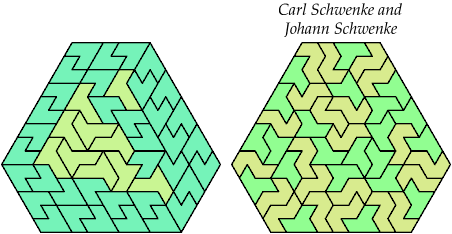

286 Cells
292 Cells

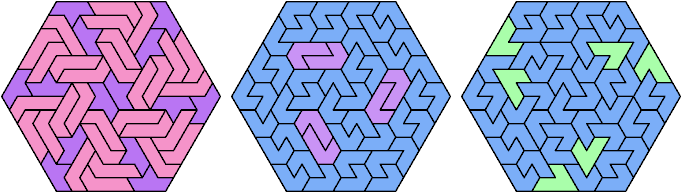

294 Cells
297 Cells
325 Cells

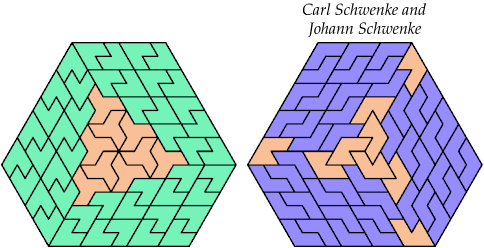

333 Cells

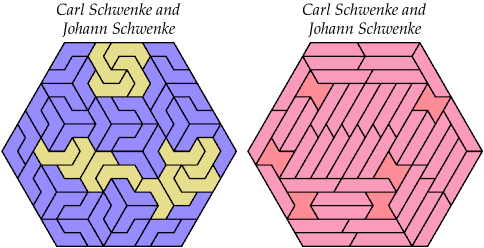

337 Cells

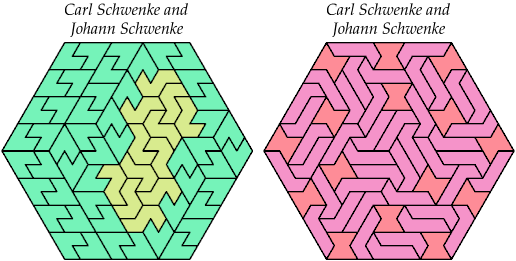

384 Cells
421 Cells

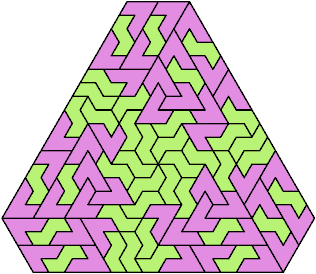

528 Cells

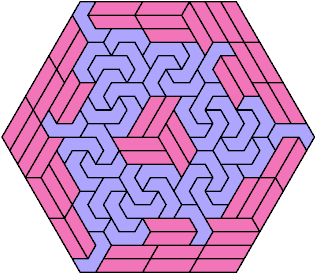

600 Cells

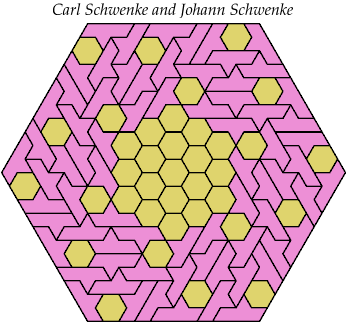

726 Cells

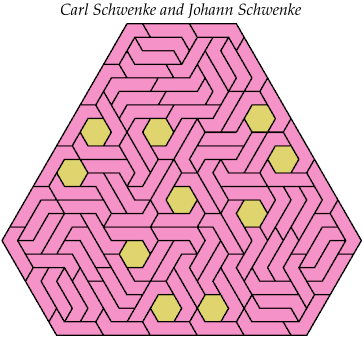

753 Cells

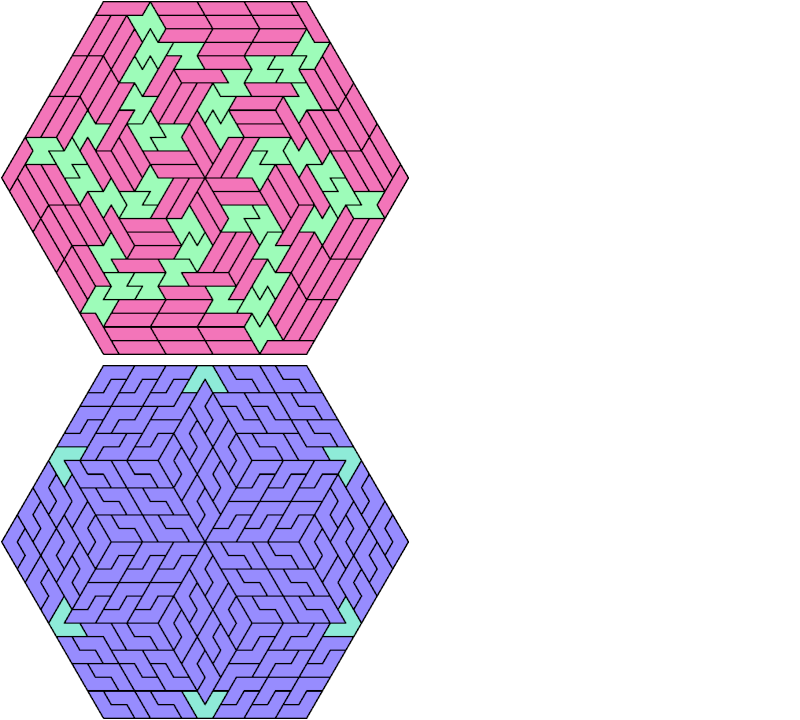

1014 Cells

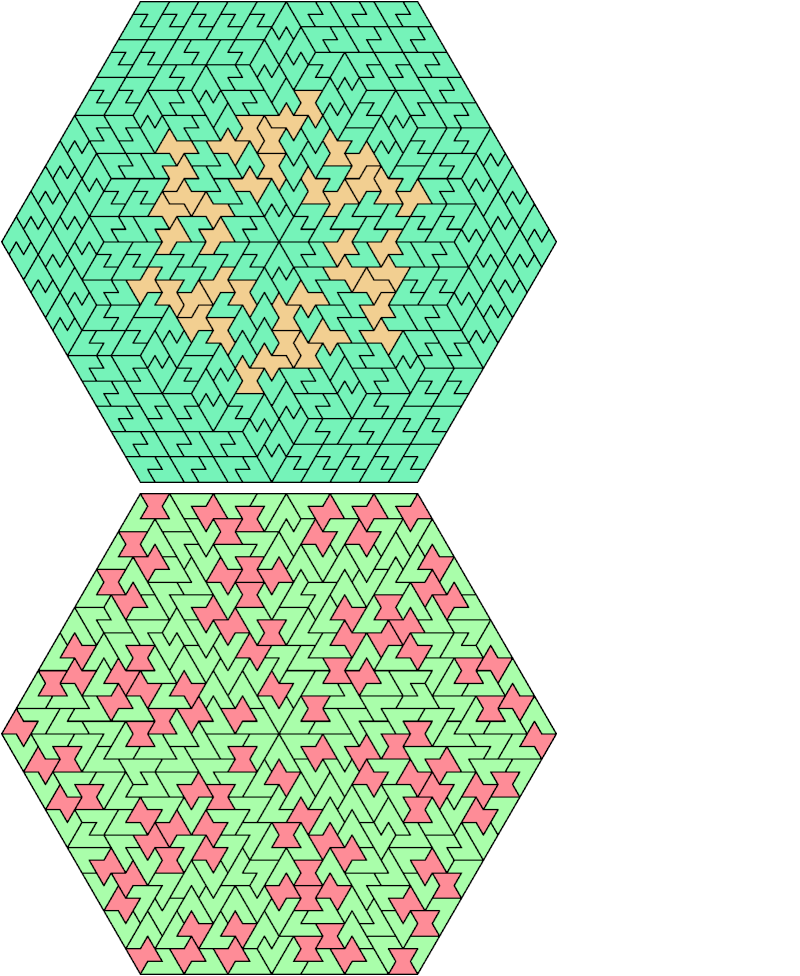

2166 Cells

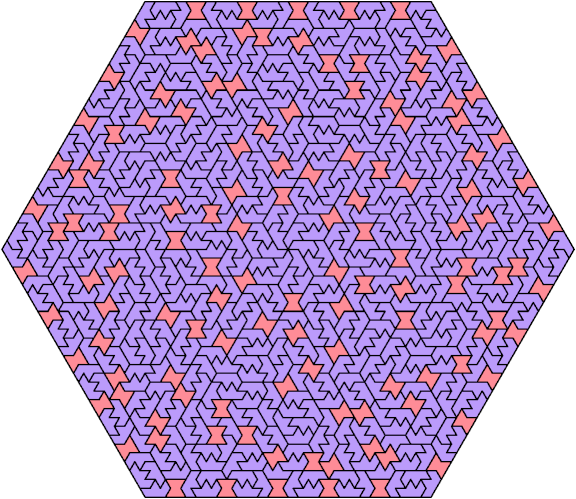

4704 Cells
Last revised 2025-08-11.
