Tiling a Holey Badge with a Polyiamond

A polyiamond badge is a convex polyiamond whose side lengths have the pattern a b a b a b.

If one of a, b is zero, the badge reduces to a triangle. (If both a, b are zero, the badge vanishes.)

Given a polyiamond, how few copies of it can be joined to form a badge with optional isolated moniamond holes that do not touch the perimeter of the badge?

Here I show minimal known holey badge tilings for polyiamonds with up through 7 cells. If you find a smaller solution or solve an unsolved case, please write.

[ Moniamond [ Diamond | Triamond | Tetriamonds | Pentiamonds | Hexiamonds | Heptiamonds ]

Moniamond

Diamond

Triamond

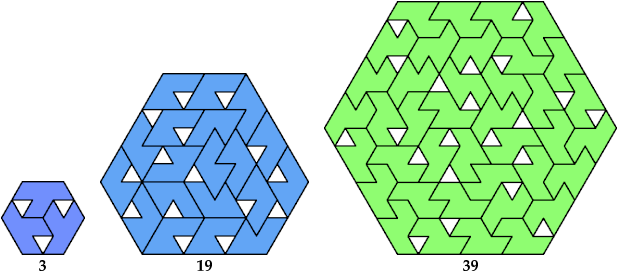

Tetriamonds

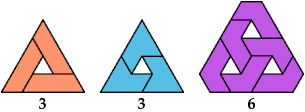

Pentiamonds

Impossible

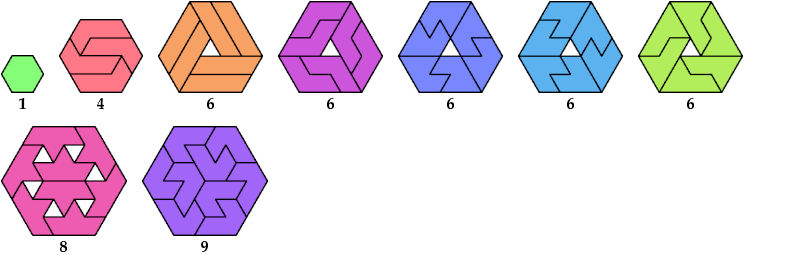

Hexiamonds

Impossible

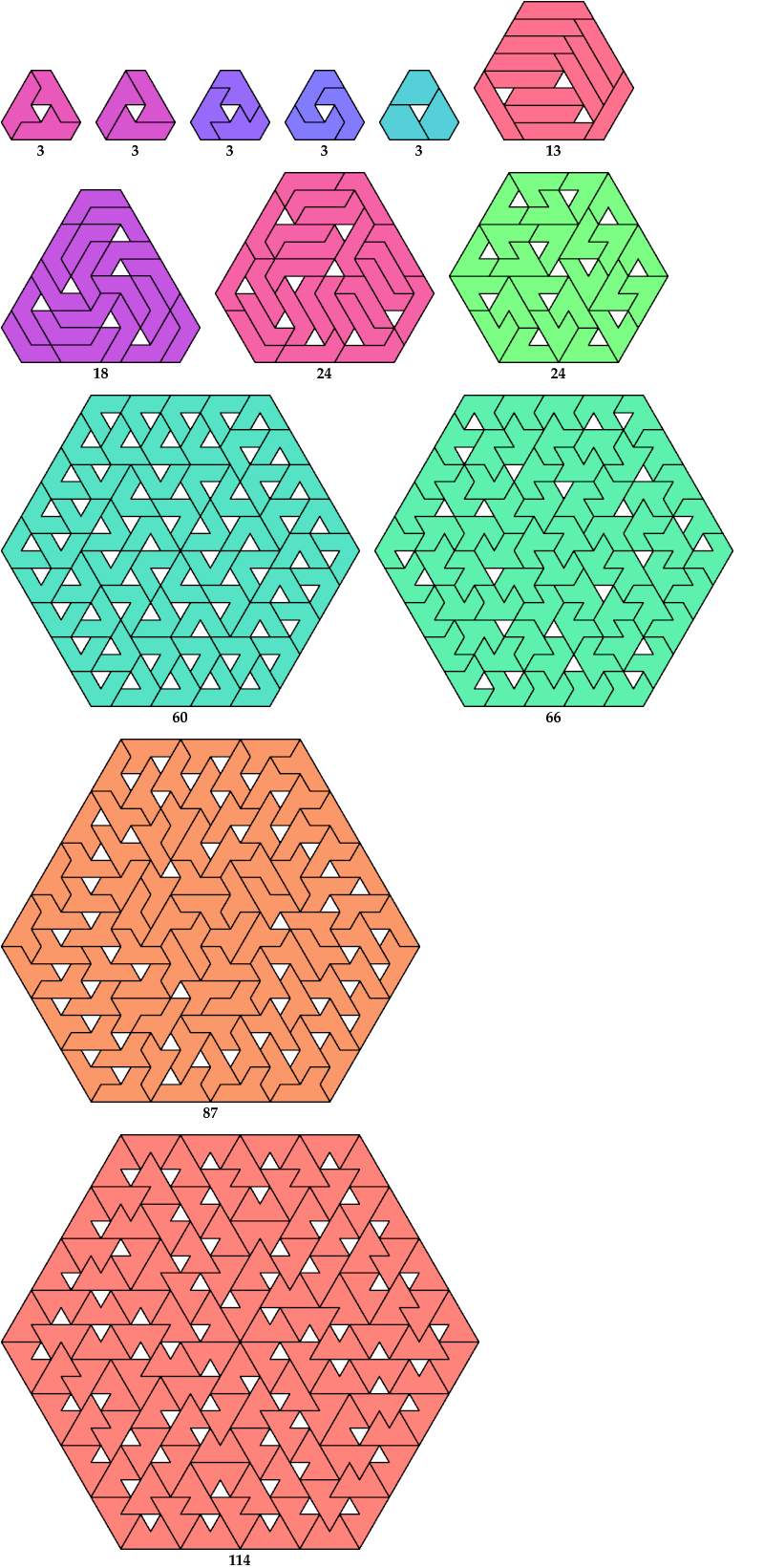

Heptiamonds

Unsolved

Solutions with Holes Touching the Perimeter

Last revised 2026-08-13.
