Tiling a Triangle with a Polyiamond

When can a polyiamond tile a triangle? Here I show some minimal tilings of triangles by copies of a polyiamond. Please write if you know of other such tilings. Every triangular polyiamond has an imbalance of cells pointing up and cells pointing down. Thus any polyiamond whose cell parity balances cannot tile a triangle.

See also Rectifiable Polyiamonds at Andrew Clarke's Poly Pages.

Nomenclature

On this page I use the term trapezium for a quadrilateral with two sides parallel. This is its classical and global meaning. A trapezoid is a quadrilateral with no sides parallel.

In Canada and the United States, following an old mathematical dictionary that transposed the definitions, a quadrilateral with two sides parallel is called a trapezoid, and a quadrilateral with no sides parallel is called a trapezium.

Moniamond

Triamond

Tetriamonds

Pentiamonds

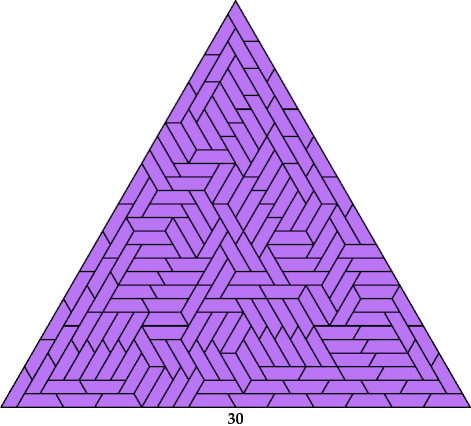

I found this tiling in April 2023 after Patrick Hamlyn and Edo Timmermans raised some questions about tiling trapezia and triangles with the straight pentiamond. Edo had used one of my trapezium tilings to tile a triangle with side 45.

As far as I know, Mike Reid was the first to tile this triangle with the straight pentiamond.

Here is a tiling of a triangle with side 35. It has ternary symmetry except in the center. I found it in 2024.

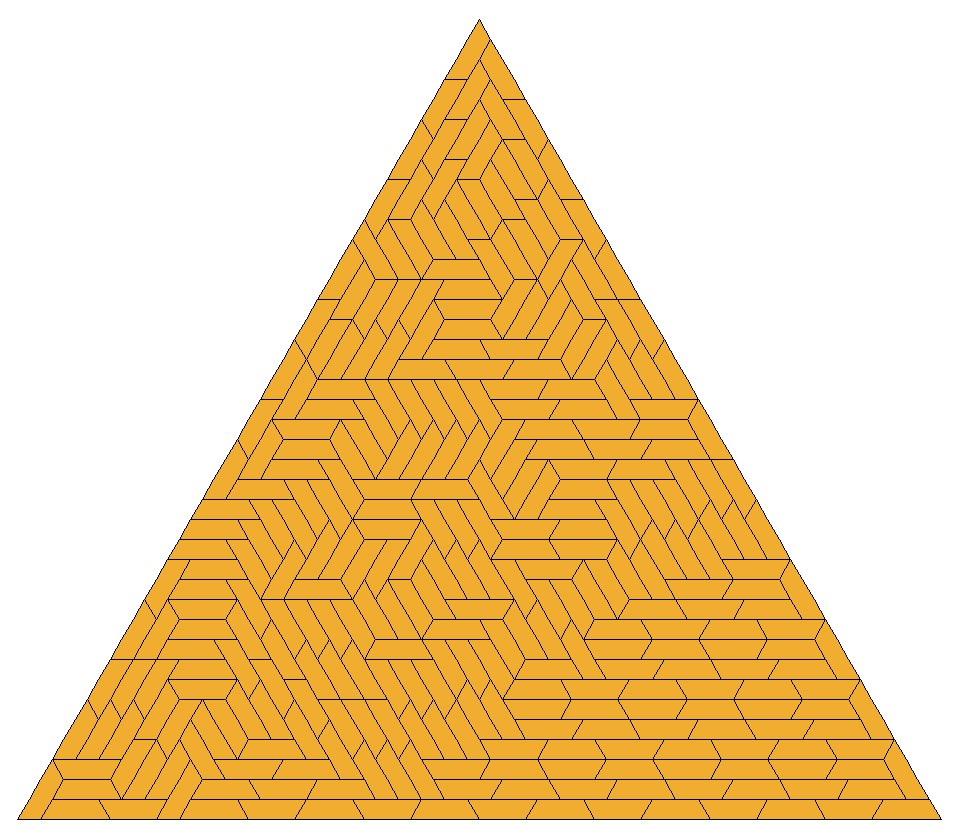

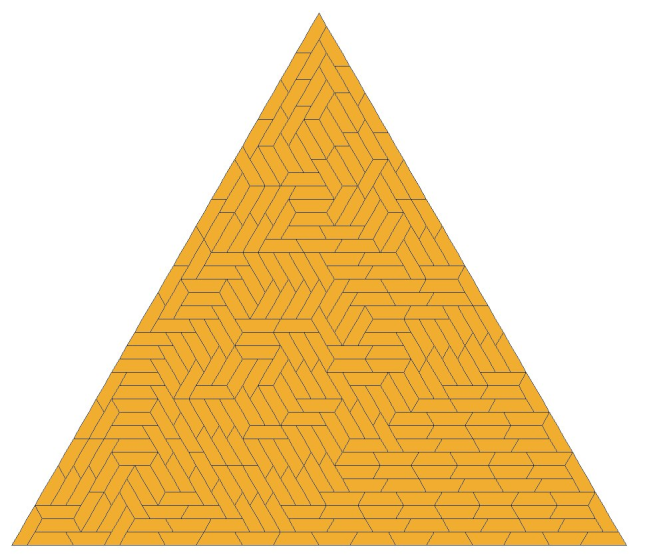

Soon after that, Patrick Mark Hamlyn posted to Puzzle Fun Facebook this tiling of a triangle with side 40.

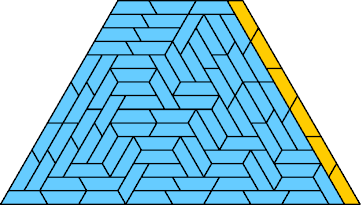

The blue trapezium below has a slant height of 15 and bases of lengths 7 and 22. It can be extended to any greater width as shown by the yellow tiles.

Such a trapezium tiling can be adjoined to a tiling of a triangle with side s, where s ≧ 7, to tile a triangle with side s + 15. Thus every triangle whose side is 30 or greater and a multiple of 5 can be tiled with straight pentiamonds.

For more information about tiling a triangle with the straight pentiamond, see these links:

  • MathOverflow
  • MathStackExchange
  • Edo Timmermans in Puzzle Fun Facebook

    • Hexiamonds

    According to Erich Friedman, Brendan Owen tiled this triangle with this hexiamond around 2003. See this page at Erich's Math Magic.

    Heptiamonds

    The only heptiamond that can tile a triangle is the straight heptiamond.

    In this article at MathOverflow, Timothy Chow reported that Mike Reid stated at a 2007 conference in Duluth that this heptiamond can tile a triangle.

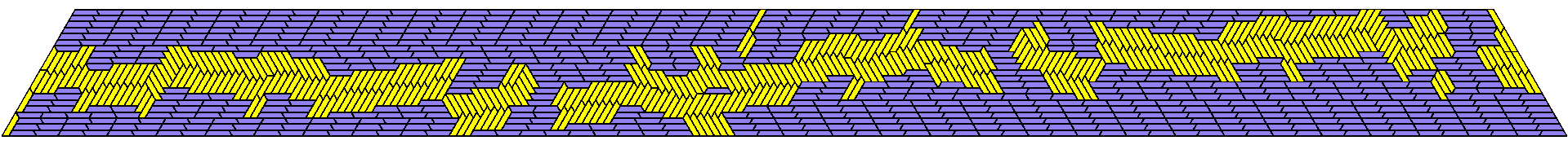

    In this article at MathStackExchange, in 2021, Tom Sirgedas posted this tiling of a trapezium with slant height 21 by straight heptiamonds. Its bases have lengths 203 and 224.

    Sirgedas pointed out that this tiling can be padded horizontally to any greater width, and that such padded trapezia can tile an expanded triamond.

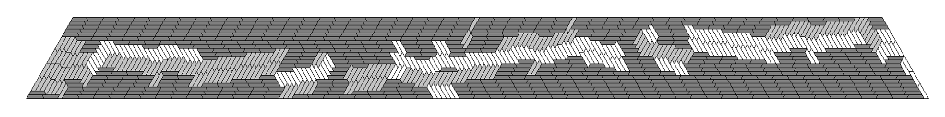

    In 2024, Carl Schwenke and Johann Schwenke shortened Sirgedas's trapezium by 20 units. The resulting trapezium has bases 183 and 204. To see it, click here.

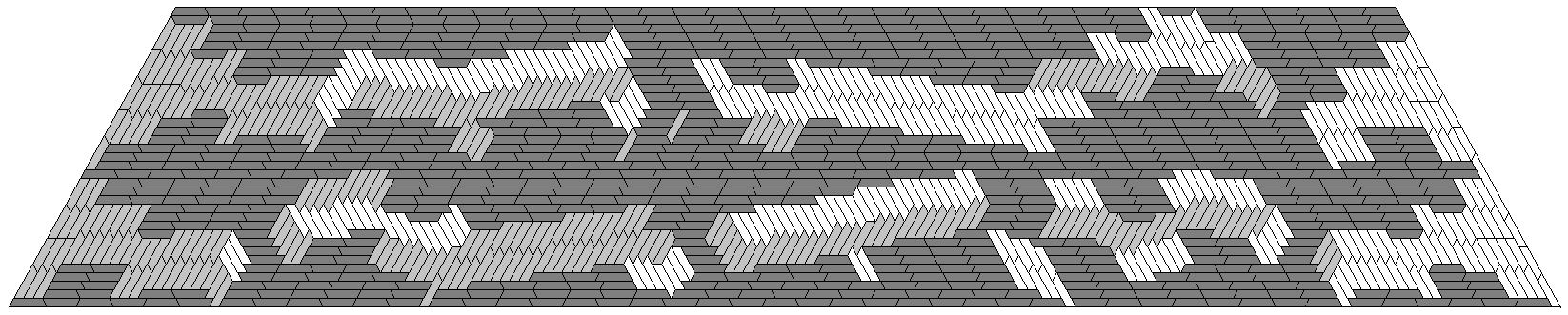

    In 2026, the Schwenke brothers tiled a trapezium with bases 128 and 163 and slant height 35. To see this tiling, click here.

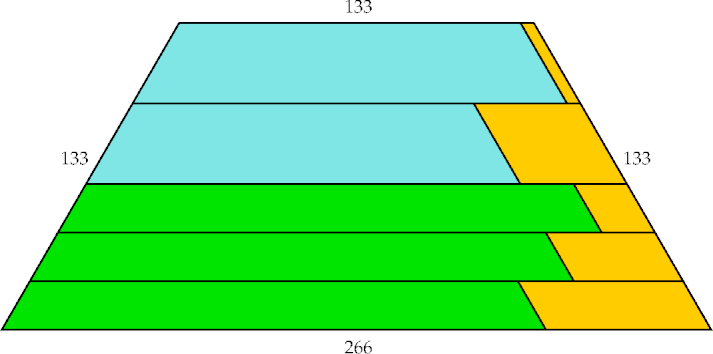

    We can adapt Sirgedas's method of constructing a triamond as shown:

    The height of the expanded triamond must be a sum of multiples of 21 and 35. The smallest such number greater than 128 is 133. So the smallest enlarged triamond that these trapezoids can form has slant height 133 and bases of lengths 133 and 266.

    Three copies of the triamond can then form a triangle.

    The resulting triangle has side 399. It has 22,743 tiles! That is too many to display here. But a smaller tiling may exist.

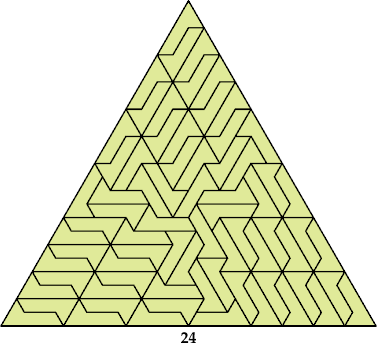

    Octiamonds

    So far as I know, Karl Scherer first tiled a triangle with this octiamond. The triangle had side 32.

    Enneiamonds

    Dodekiamonds

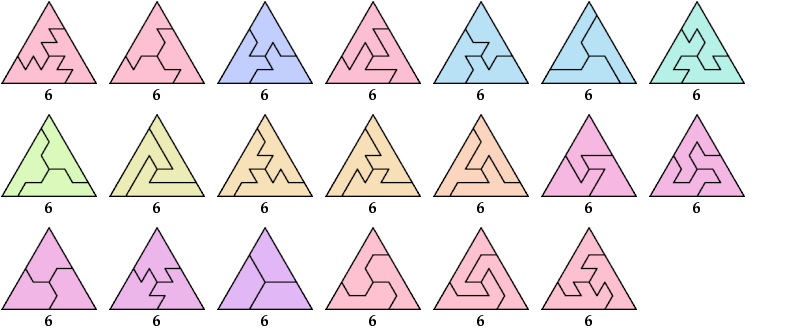

    Carl Schwenke and Johann Schwenke identified two tilings that were missing from the picture below.

    Last revised 2026-07-24.
