Pentomino Pair Dual Diagonal Oddities
A polyomino oddity
is a symmetrical figure formed by an odd number of copies of
a polyomino.
Symmetrical figures can also be formed with copies of two
different pentominoes.
Here are the smallest known dual-diagonal oddities
for the 66 pairs of pentominoes.
See also
Carl Schwenke and Johann Schwenke contributed improvements.
| | F | I | L | N | P | T | U | V | W | X | Y | Z |
|---|
| F | * | 7 | 9 | 7 | 5 | 9 | 7 | 9 | 7 | 5 | 5 | 5 |
|---|
| I | 7 | * | 5 | 7 | 3 | 5 | 3 | 7 | 7 | 5 | 7 | 5 |
|---|
| L | 9 | 5 | * | 7 | 5 | 9 | 7 | 7 | 7 | 5 | 9 | 7 |
|---|
| N | 7 | 7 | 7 | * | 7 | 9 | 13 | 7 | 5 | 5 | 9 | 7 |
|---|
| P | 5 | 3 | 5 | 7 | * | 5 | 7 | 3 | 5 | 5 | 5 | 3 |
|---|
| T | 9 | 5 | 9 | 9 | 5 | * | 21 | 9 | 11 | 5 | 9 | 7 |
|---|
| U | 7 | 3 | 7 | 13 | 7 | 21 | * | 3 | 13 | 5 | 9 | 7 |
|---|
| V | 9 | 7 | 7 | 7 | 3 | 9 | 3 | * | 5 | 3 | 5 | 7 |
|---|
| W | 7 | 9 | 7 | 5 | 5 | 11 | 13 | 5 | * | 3 | 9 | 7 |
|---|
| X | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 3 | 3 | * | 5 | 5 |
|---|
| Y | 5 | 7 | 9 | 9 | 5 | 9 | 9 | 5 | 9 | 5 | * | 5 |
|---|
| Z | 5 | 5 | 7 | 7 | 3 | 7 | 7 | 7 | 7 | 5 | 5 | * |
|---|

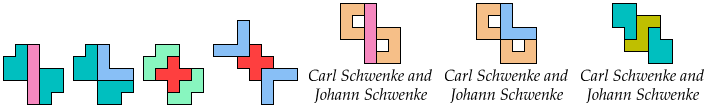

3 Tiles

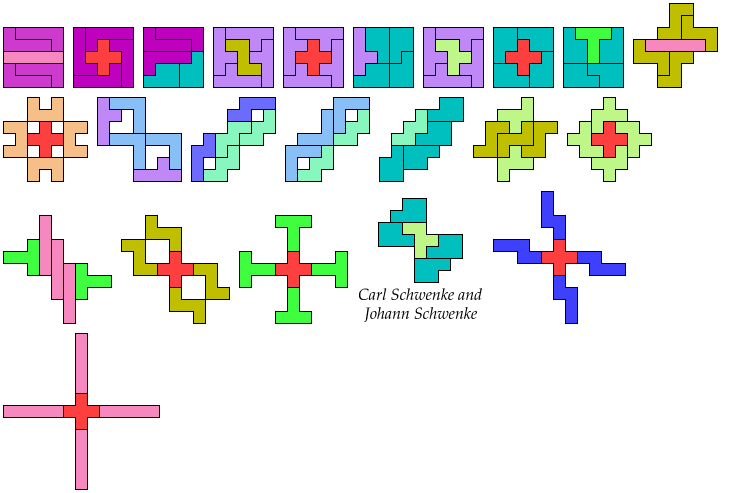

5 Tiles

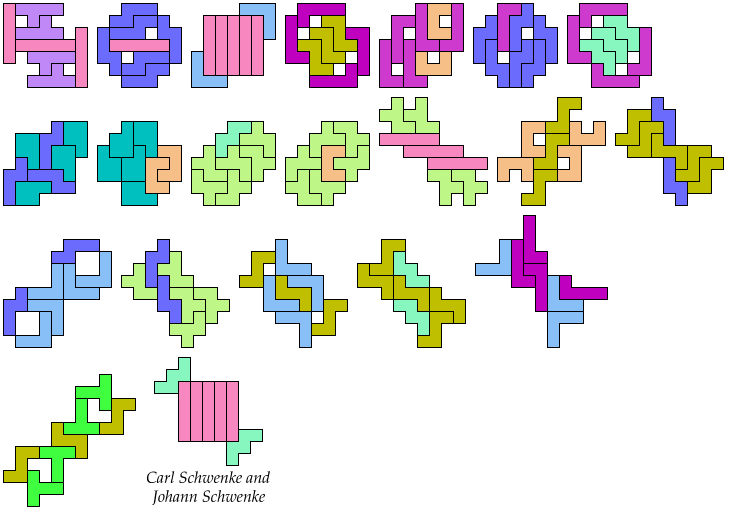

7 Tiles

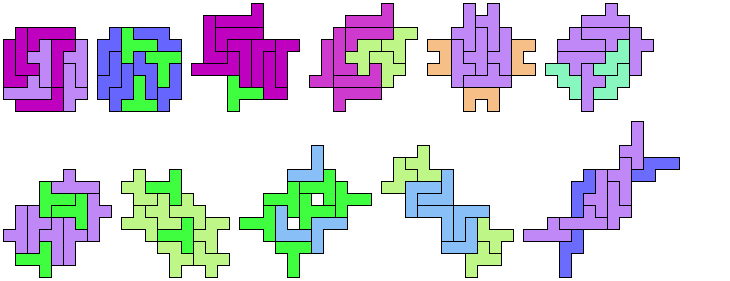

9 Tiles
11 Tiles
13 Tiles
21 Tiles
Solutions shown above that are holeless are not shown here.
7 Tiles

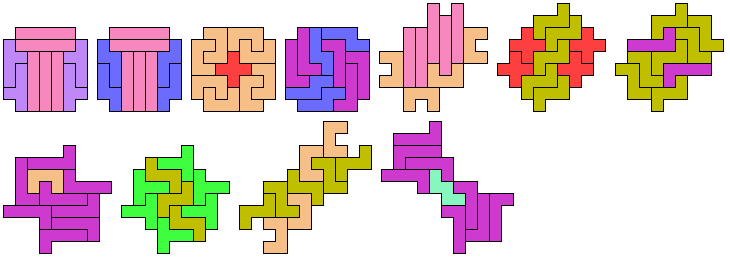

9 Tiles
11 Tiles
13 Tiles

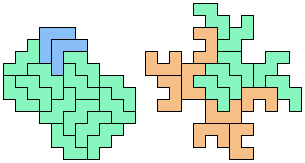

15 Tiles
25 Tiles
Last revised 2025-05-25.
